PACKING LIST(GA/GC):

Smart knob thermostat *1
Manual *1
PACKING LIST(GB):

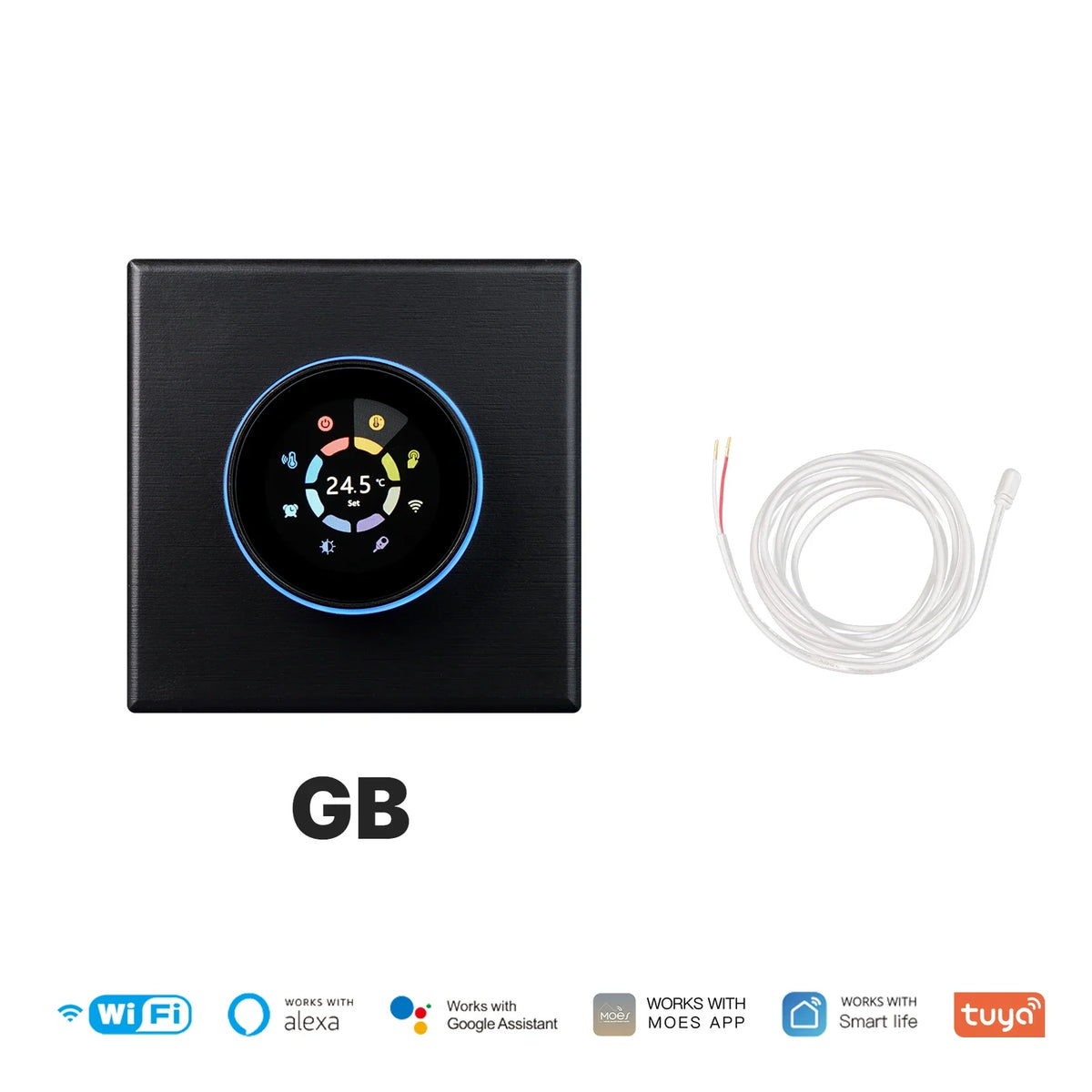

Smart knob thermostat *1
External temperature sensor cable *1
Manual *1

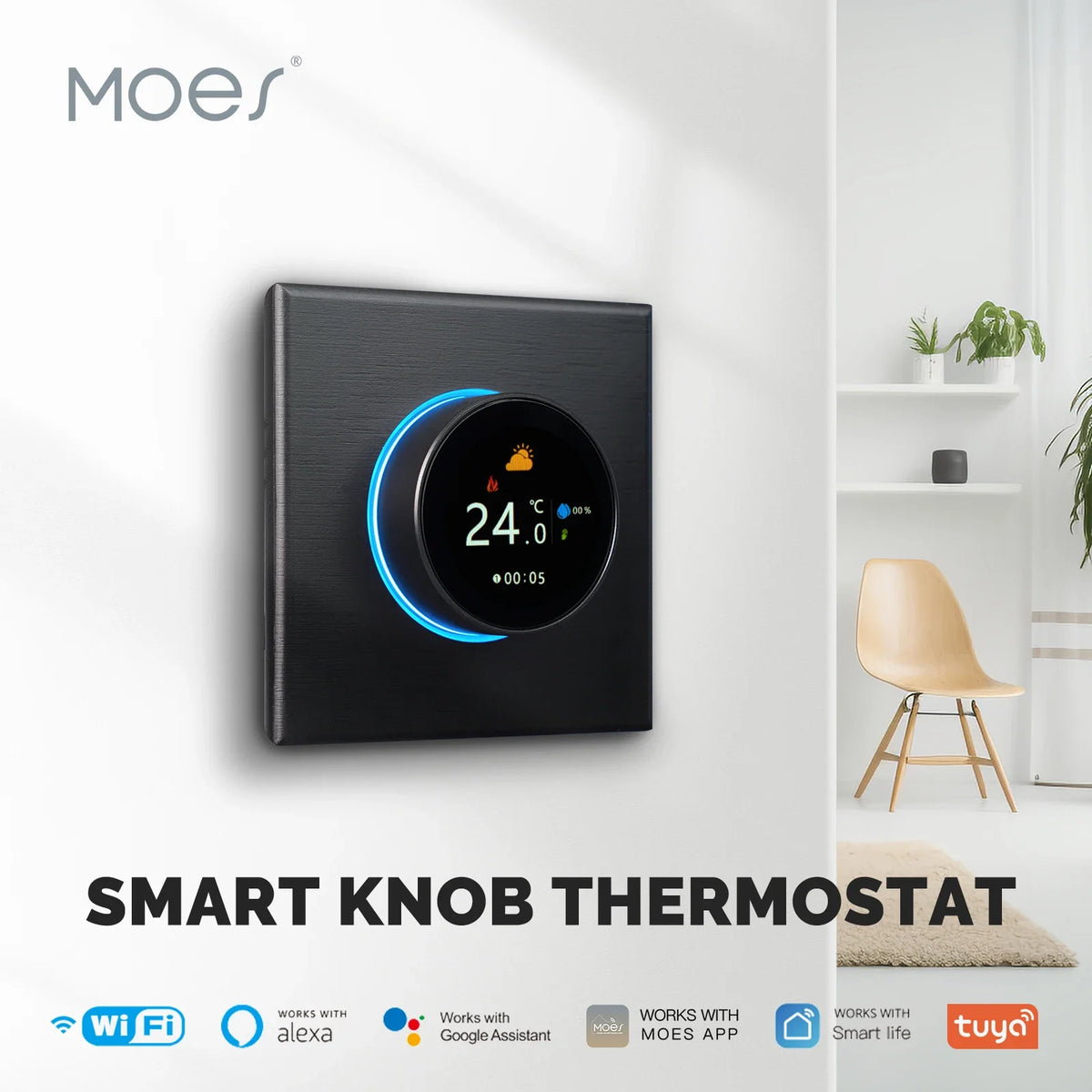

SMART KNOB THERMOSTAT

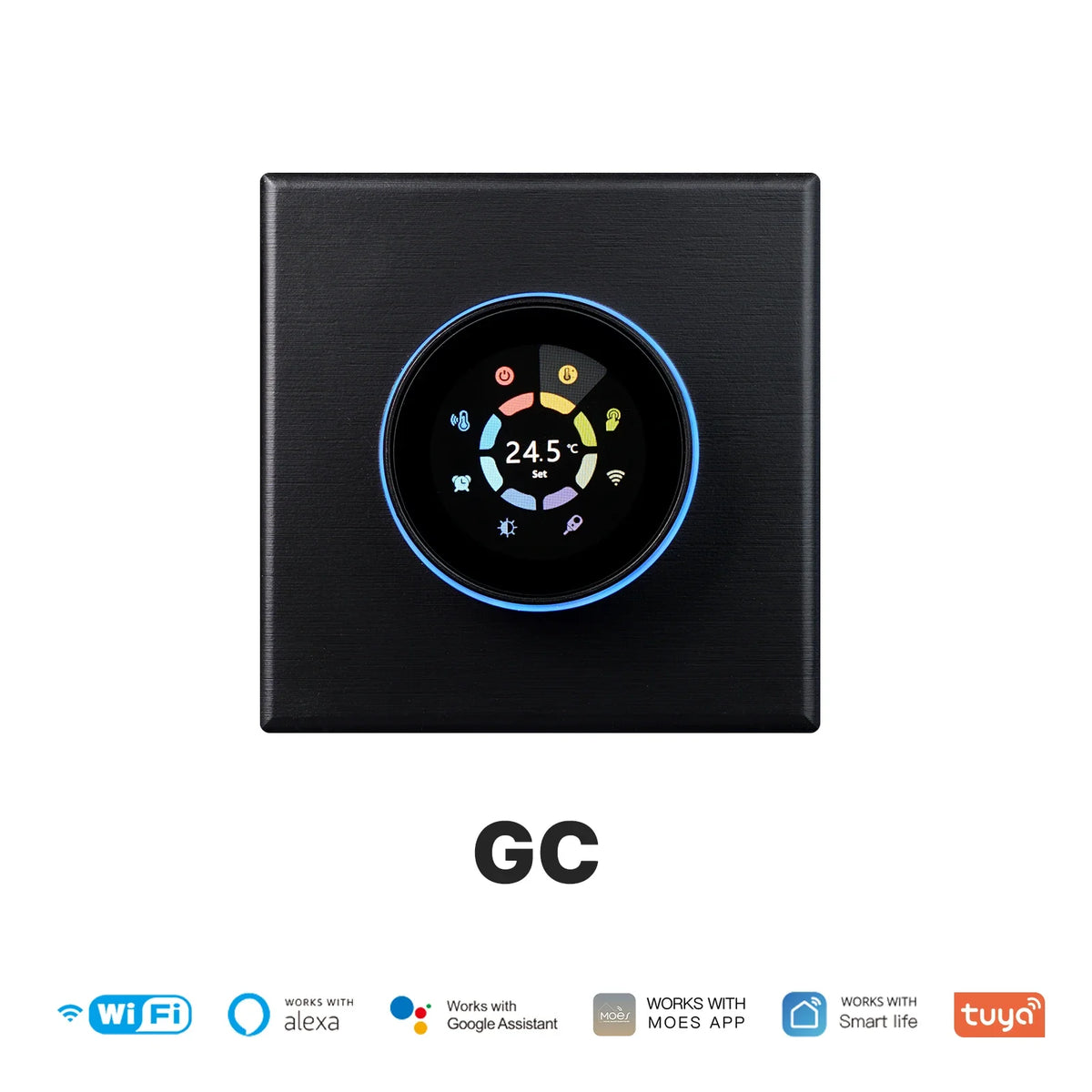

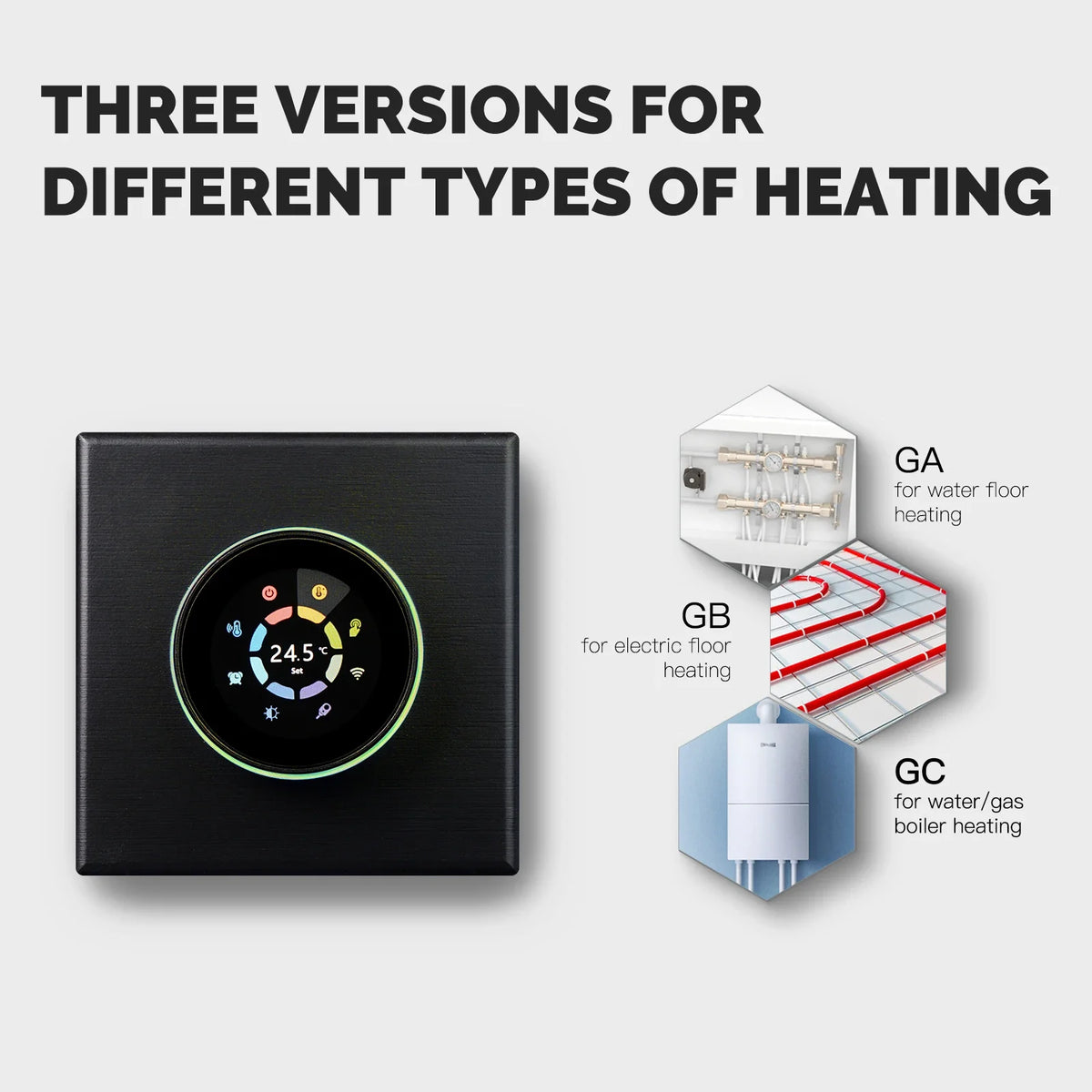

THREE VERSIONS FOR DIFFERENT TYPES OF HEATING

VOICE CONTROL

APP REMOTE CONTROL

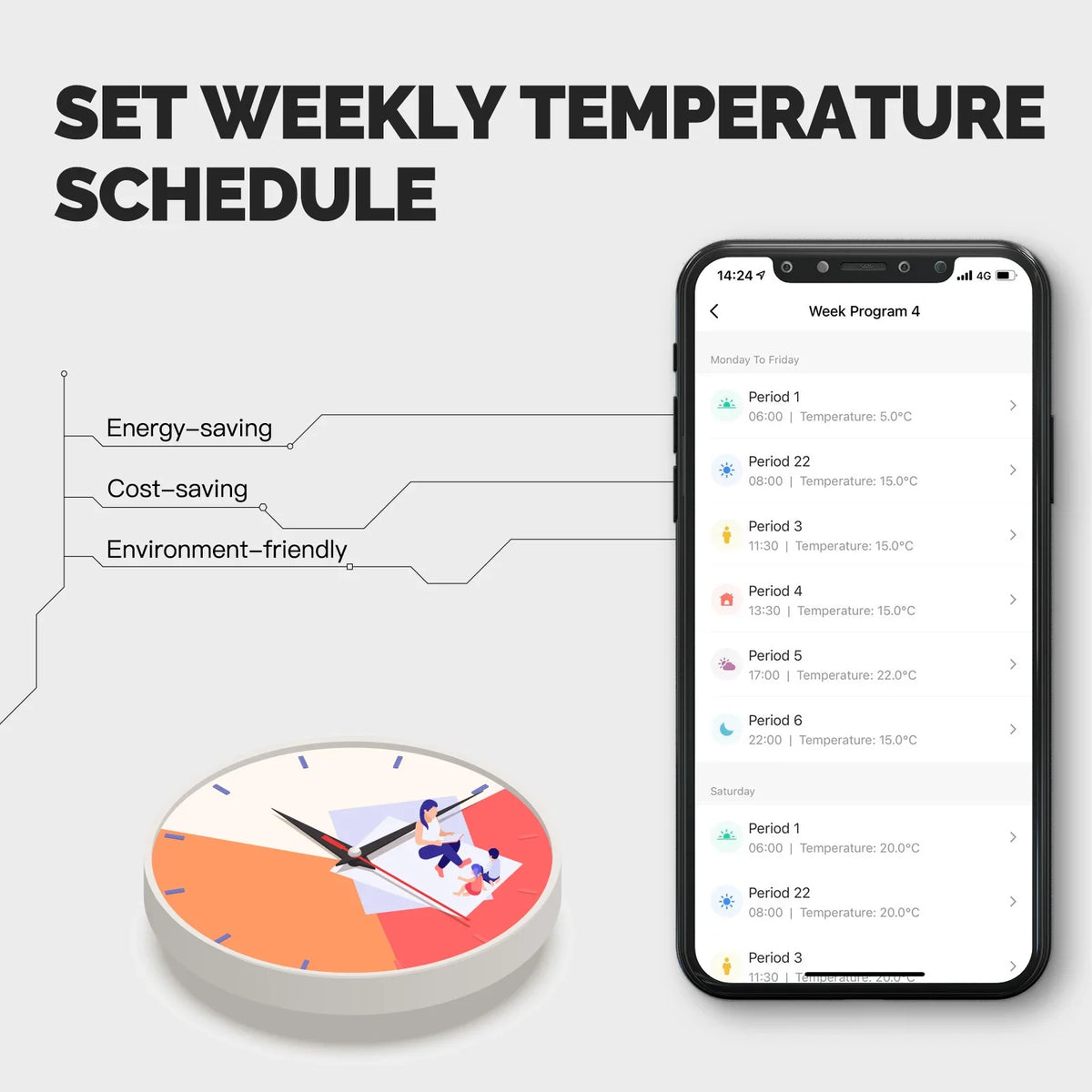

SET WEEKLY TEMPERATURE SCHEDULE

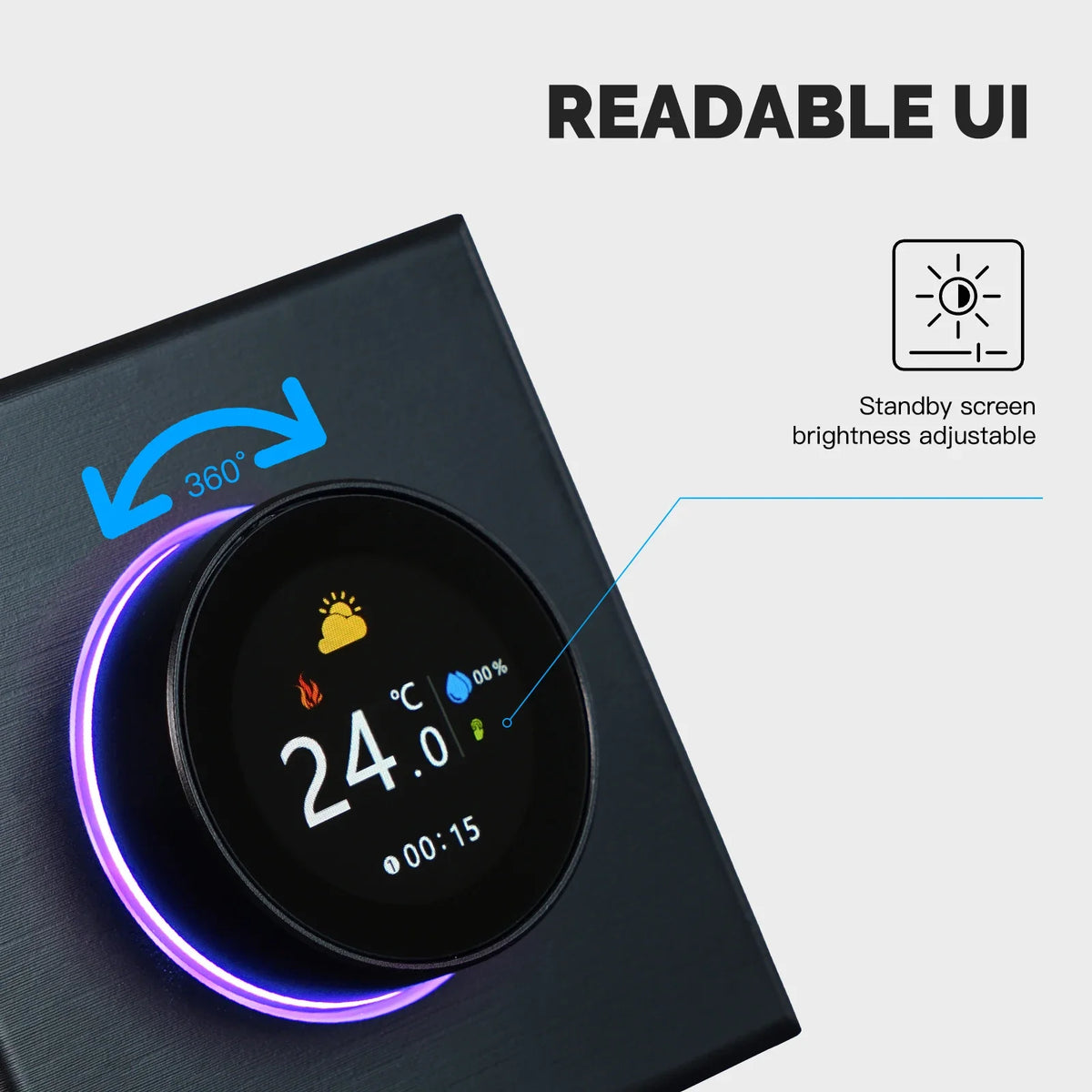

READABLE UI

KNOB CONTROL
Complete functions displayed on the knob and can be controlled by rotating the knob for your convenience

TEMPERATURE CALIBRATION
In case of the temperature variation between the floor and the air, you can set the calibration value by App, to make sure the final temperature reaches your ideal value

PROTECT FROM HIGH TEMPERATURE
Automatically stop heating to keep you safe from danger may triggered by high temperature

WIDER ADAPTABILITY TO HIDDEN BOX
The compact size makes it easy to install in the different sizes of hidden box such as 86mm square cassettes and 60mm european round cassettes

SHARE DEVICE
Device share to your family members to control the samrt thermostat together

SHARE DEVICE
Device share to your family members to control the samrt thermostat together

WIRING DIAGRAM
Check your thermostat version is GA/GB/GC and choose the correct wiring method

DIMENSIONS


TECHNICAL SPECIFICATIONS:
Power Supply:95 ~240 VAC, 50~60Hz
Current Load: 5A (water heating, gas boiler), 16A (electric heating)
Set Temp. Range: 5-45°C
Room Temp. Range: 5-99°C
Display Temp. Range: 5 ~ 99°C
Ambient Temp.: 0~ 45°C
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.: 0~ 45°C
Shell Material: PC +ABS ( Fireproof)
Installation Box: 86 * 86mm Square or European 60mm Round Box
Wire Terminals: Wire 2 x 1.5SQMM or 1 x 2.5SQMM
Protection Class: IP20
Buttons: Knob
